Abilities
l Detection of electronic devicessuch as bugs, microphones, cameras, voice recorders, telephones, electroniccomponents of explosive devices that may be in the off, sleep or on state
l Ability to search in wetconditions, for example, wet walls, soil, bushes, etc.
l A removable telescopic poleallows the operator to easily turn the device from search to inspection modeand vice versa
l Compact size and light weightprovide comfortable working conditions for the operator
l Maximum search efficiency ofany electronic devices in the most difficult conditions when used with otherreplaceable antenna modules of Lornet-Star set
l The small thickness (18mm) ofthe antenna module allows you to conduct search work in hard-to-reach places
l The presence of an additionalbattery with a charging time significantly shorter than the discharge timeallows, if necessary, to carry out round-the-clock operation
l The presence of an additionalbattery with a charging time significantly shorter than the discharge timeallows, if necessary, to carry out round-the-clock operation
l Recognition (identification) ofelectronic components from natural semiconductors (rust, metal-to-metalcontacts, etc.) in CW mode by listening to the signal from the output of theamplitude detector when receiving the 2nd and 3rd harmonics through the built-inspeaker or headphones
l CW mode can be used to identifyworking analogue radio microphones due to the acoustic feedback
l Additional assessment of the2nd and 3rd harmonic levels by ear by the frequency of clicks played throughthe built-in speaker or headphones
l Automatically search for thefrequency channel with the least interference for working in complexelectromagnetic environments
l Automatic and manual outputpower adjustment
l Manual receiver sensitivityadjustment
Technical parameters
Transmitter
Bandwidth 788 - 792 MHz
Twotypes of radiated signal:
"Pulse"- Pulse modulation of the carrier frequency with a duty cycle: 44
"CW"- Continuous carrier frequency radiation:
Maximumpeak power of radiation in pulse mode (Pulse) 10 W
Maximumaverage radiation power in pulse mode (Pulse) 230 mW
Maximumcontinuous radiation power (CW) 300 mW
Therange of manual power adjustment 20 dB
Widthof the direction diagram 110 degree
Reciever
Frequencyrate:
Secondharmonic 1576- 1584 MHz
Thirdharmonic 2364 - 2376 MHz
Receiversensitivity is not worse -110 dBm
Dynamicrange of the receiving tract (including the attenuator) 24 (10) dB
Theamount of frequency channels when automatically selecting the receiving channel 9
Battery
Li-ionbattery:
Voltage 12 V
Capacity 7.8 Ah
Continuousoperation time at maximum power not less than:
InPulse mode 3 h
InCW mode 1.5 h
Sizeand weight
Thedevice size:
Inworking condition, without telescopic rod 50х17х5.5 cm
Infold condition, without telescopic rod 29х17х6.5 cm
Telescopicrod size in fold condition 43х4х4 cm
Sizeof the telescopic rod in the extended state 99х4х4 cm
Weightin working condition, without telescopic rod 1kg
Telescopicrod weight 0.4kg
Thesize of the bag 50х26х12cm
Weightin transport package 2.6 kg
Exportpackage dimensions 44х38х16cm
Weightin export package 4.5 kg
Operatingterms
Operatingtemperature range from +5 to+40°С

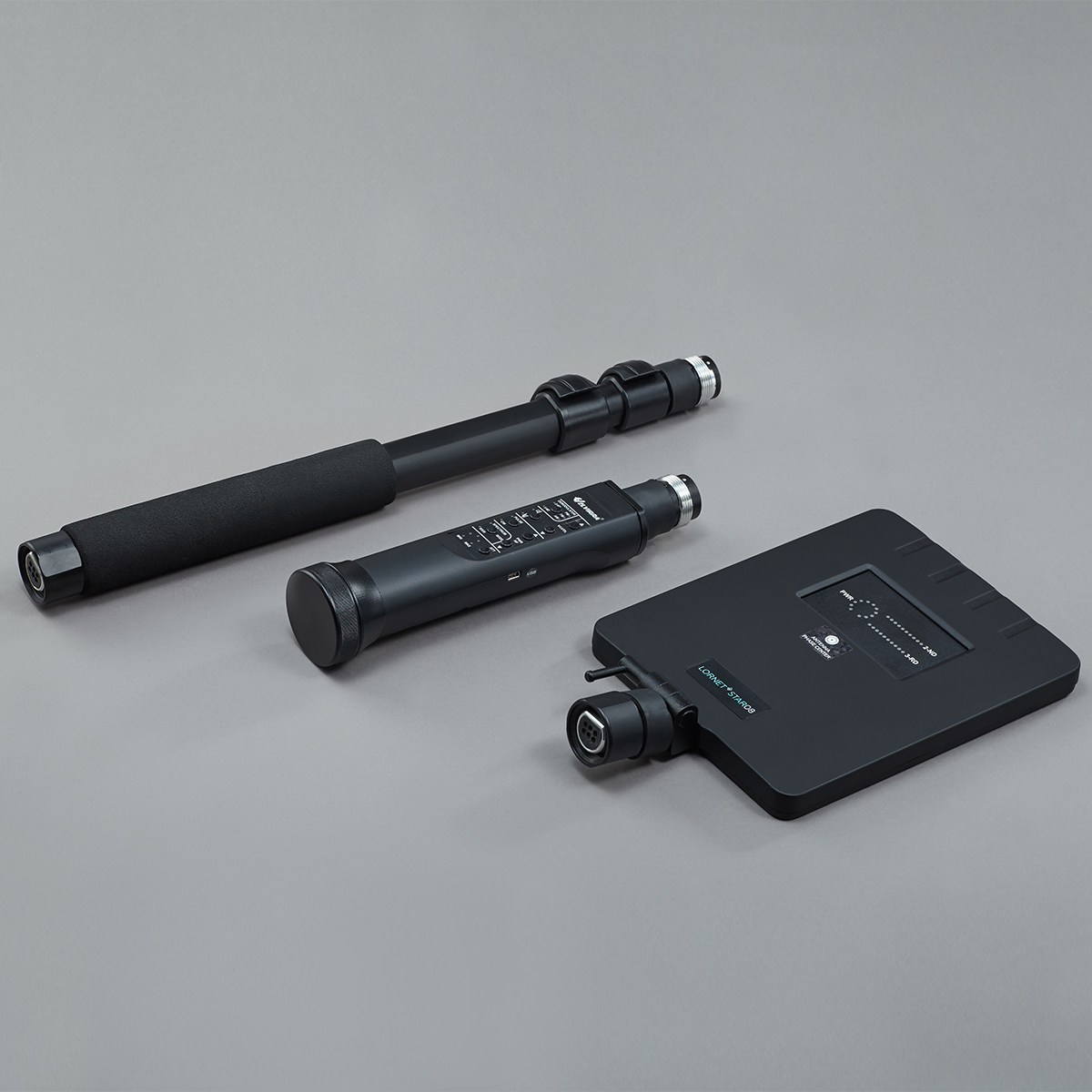

Equipment kit
l Replacement antenna module "LORNET STAR08"
l Handle-control panel with built-in batterycontainer
l Removable telescopic pole
l 2 (two) replaceable (Li-ion) rechargeable batteries(12 V)
l Charging unit for rechargeable battaries
l 220V battery charger for rechargeable batteries
l Headphone
l Transport bag-stowage
l Documentation (operator's manual, passport)
