Abilities
l Detection of electronic devicessuch as bugs, microphones, cameras, voice recorders, telephones, electroniccomponents of explosive devices that may be in the OFF, sleep or ON mode
l One device combines the abilityto detect in a humid environment (wet walls, rooms, soil, bushes, etc.) (in the800 MHz band) and remote detection with target location (in the 3600 MHz band)
l Remote detection of metalstriking elements at a distance of up to 10 meters
l A dual-band non-linear junctiondetector on open areas allows the detection of a target semiconductor in a widesector of 110 degrees (in the range of 800 MHz), followed by location of thetarget in the sector of 16 degrees (in the range of 3600 MHz)
l Indication of target locationwith laser illumination
l Record lightweight (1.4kg)provides comfortable working conditions for the operator
l Three types of emitted signalswith pulse modulation of the carrier frequency in the Pulse detection mode witha duty cycle of 160: 1) a signal in the 800 MHz band, 2) a signal in the 3600MHz band, 3) a signal in the 800 MHz band and a signal in the 800 MHz bandsimultaneously
l Two types of emitted signalswith pulse modulation of the carrier frequency in CW mode with a low duty cycleof 20, similar to the "20K" mode: 1) a signal in the range of 800MHz, 2) a signal in the range of 3600 MHz
l Recognition (identification) ofelectronic components from natural semiconductors (rust, metal-metal contacts,etc.) in CW mode, by listening through the built-in speaker or wirelessheadphones to the signal from the output of the amplitude detector whenreceiving the 2nd and 3rd harmonics
l The CW mode with pulsedmodulation of the frequency with a low duty cycle can be used to identifyworking analog radio microphones due to the occurrence of acoustics feedback
l Additional assessment of the2nd and 3rd harmonic levels by ear by the frequency of clicks played throughthe built-in speaker or wireless headphones
l Automatic search for thefrequency channel with the least interference for working in complexelectromagnetic environments
l Automatic and manual outputpower adjustment
l Manual receiver sensitivityadjustment
Technicalparameters
Transmitter
Lowerband operating frequency range 3581.5 - 3607.5 MHz
Higherband operating frequency range 789.5 - 791.5 MHz
Thereare two types of radiated signal in each band:
"Pulse"- Pulse modulation of the carrier frequency with a duty cycle: 280
CW -pulse modulation with duty cycle: 16
Maximumpeak power of radiation in pulse mode (Pulse) 18 W
Maximumaverage radiation power in pulse mode (Pulse) 64 mW
Maximumcontinuous radiation power (CW) 6 W
Average power of radiation in pulse mode (CW) 375 mW
Therange of manual power adjustment 20 dB
Reciever
Frequencyrange of the second harmonic of the lower range: 1579 - 1583 MHz
Frequencyrange of the third harmonic of the lower range: 2368.5 - 2374.5 MHz
Frequencyrange of the second harmonic of the higher range: 7163 - 7215 MHz
Frequencyrange of the third harmonic of the higher range: 10744.5 - 10822.5 MHz
Receiversensitivity is not worse -110 dBm
Dynamicrange of the receiving tract (including the attenuator) 30 (10) dB
Theamount of frequency channels when automatically selecting the receiving channel 3
Battery
Li-ionbattery:
Voltage 3.6 V
Capacity 7.8 Ah
Continuousoperation time at maximum power not less than:
InPulse mode 2.5 h
In CWmode 1.5 h
Size andweight
Thedevice size:
Inworking condition 32х32х22 cm
Weightin working condition 1.4 Kg
Thesize of the bag 42х28х34cm
Weightin transport package 5.2 kg
Operatingterms
Operatingtemperature range from +5 to+40°С
Equipmentkit

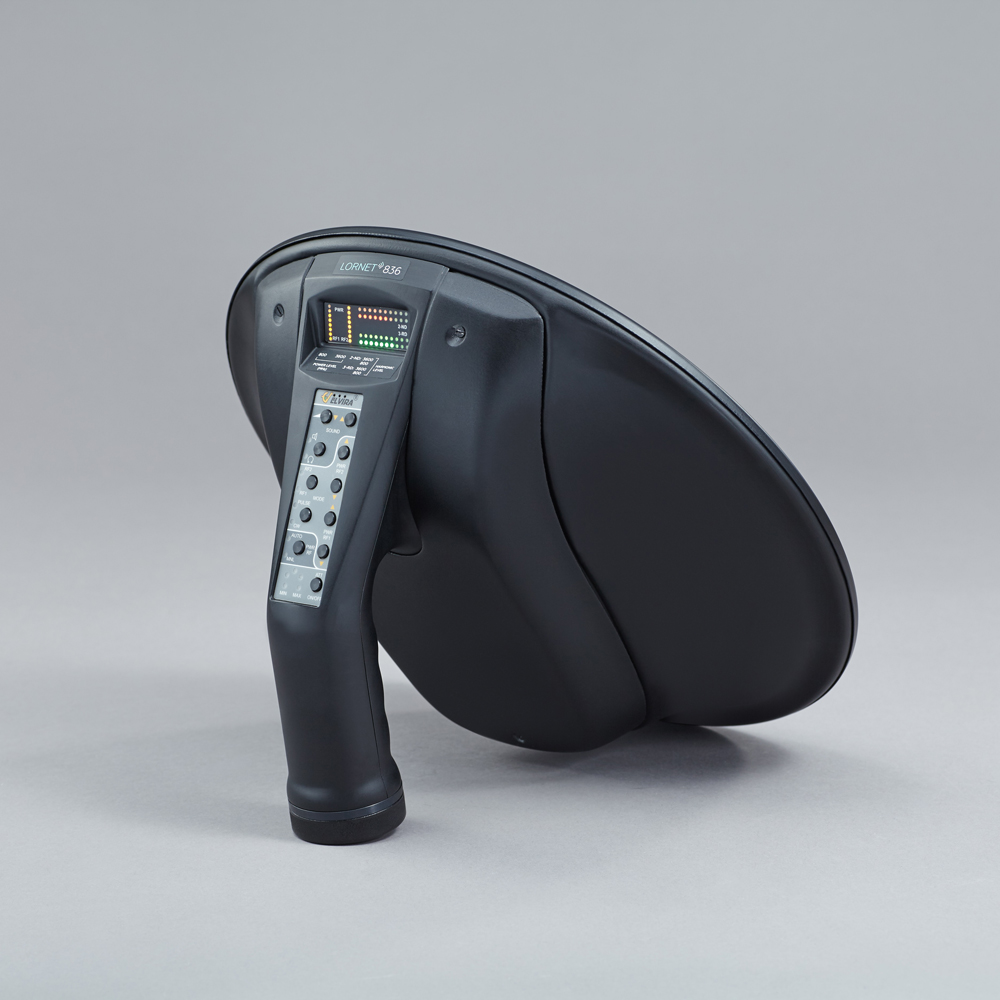

l Receiving and transmitting unitwith remote control handle and built-in battery container
l 2 (two) replaceable (Li-ion)rechargeable batteries (4 V)
l Charging unit for rechargeablebattaries
l 220V battery charger forrechargeable batteries
l Wireless headset with radioreceiver
l AC adapter (220V) for radioreceiver
l Transport bag-stowage
l Documentation (operator'smanual, passport)
