ZLR350 IronYak Multipurpose Load-assist Vehicle

Product Overview

ZLR350 is a towing/automatic following load-bearing vehicle specially designed for field workers. It consists of a vest and a vehicle platform. The drive system uses high-power hub electric output to generate strong power, and can withstand 80kg load to move forward. In the four-wheel state, the overall load is as high as 150kg, which effectively improves the handling efficiency. The human-machine interface is connected to the vest with a quick-re-lease structure, and it can be separated immediately by pulling.

Features

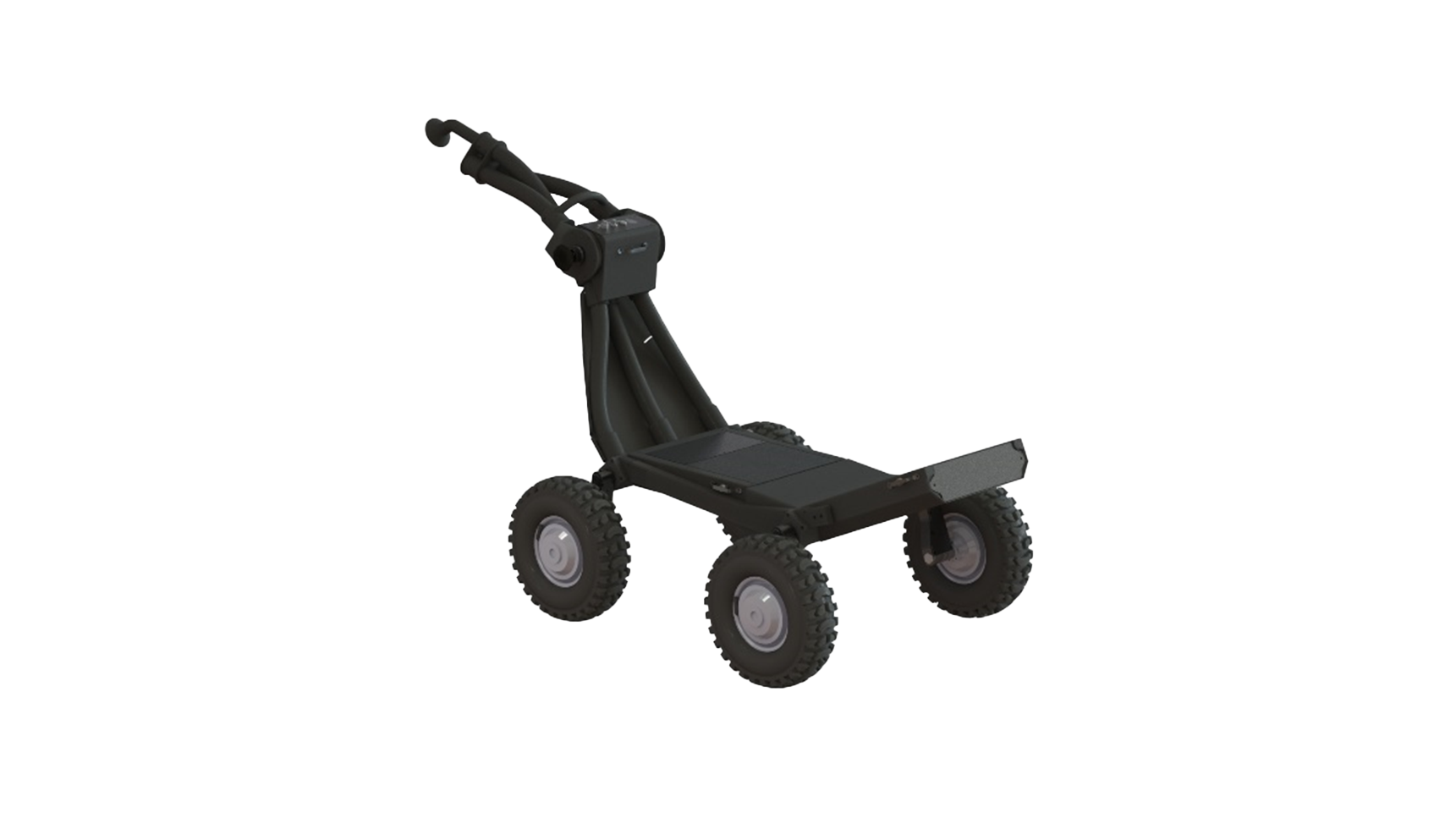

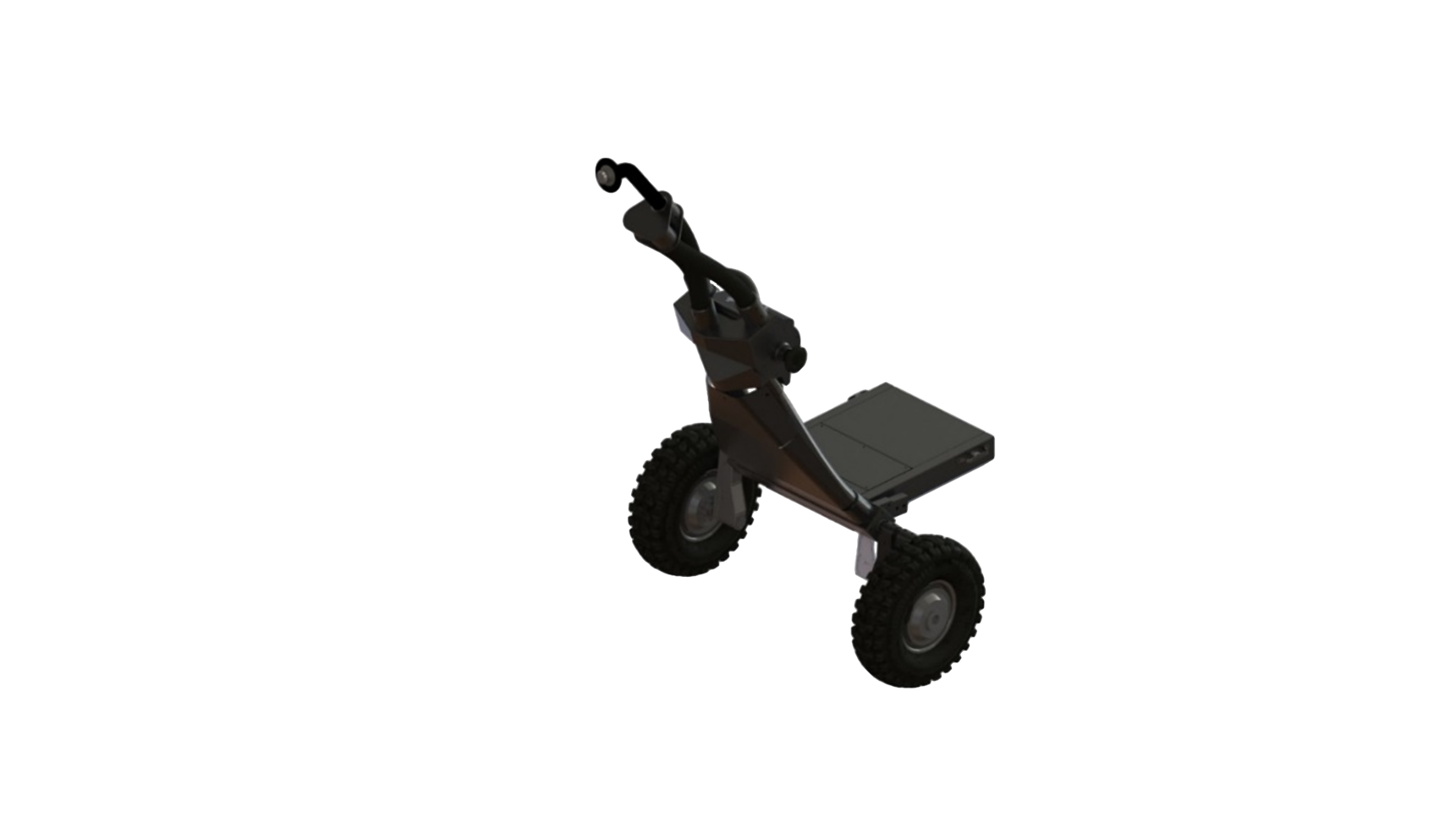

Can be spliced   f rom two wheels to four wheels

Excellent load capacity, normal load capacity is 80KG, increased to 150kg after splicing

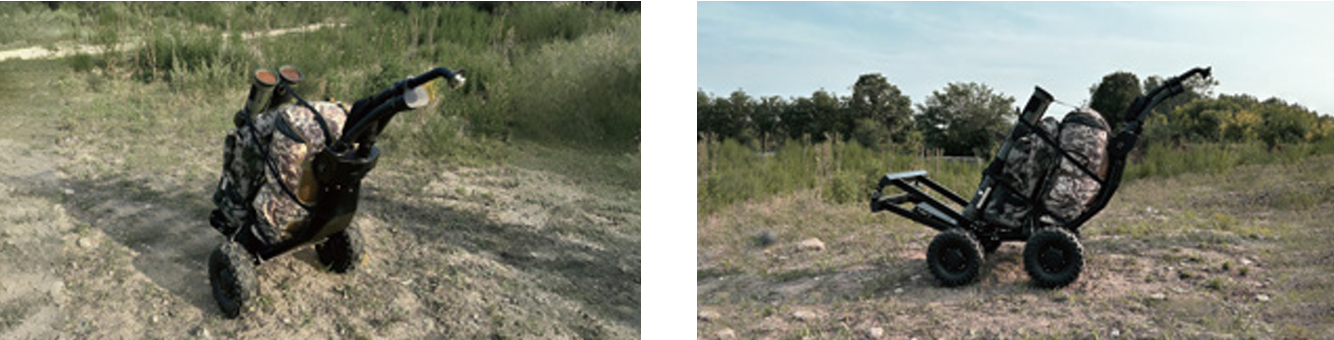

Excellent terrain passing ability

Long battery life

Quickly put on and take off within 10 seconds

Support wireless control

Function

"Evolutionary system", two in one Adaptive cruise control

Foldable storage

Quick human-machine separation Replaceable battery

Cruise control

Active braking

Anti-slip function

Supports both wired and wireless control modes

Specifications

Dimensions

2-wheel:≤750×800×850mm (fold)

4-wheel:≤1300×800×1500mm (Expand)

Weight

2-wheel:≤35kg

4-wheel:≤55kg

Load Capacity

2-wheel:≥80kg

4-wheel:≥150kg

Endurance Time/Mileage

Battery Time: ≥8h

Endurance Mileage: ≥50km

Maximum Following Speed：≥5m/s (3 speeds, infinitely variable)

Vertical Obstacle Clearance：≥250mm

Crossing Gap：≥45cm

Gradeability:≥30°

Fording Depth：≥0.6m

Wheel Diameter：≥330mm

Operating Temperature：-40℃～+55℃

IP Grade：≥IP66
