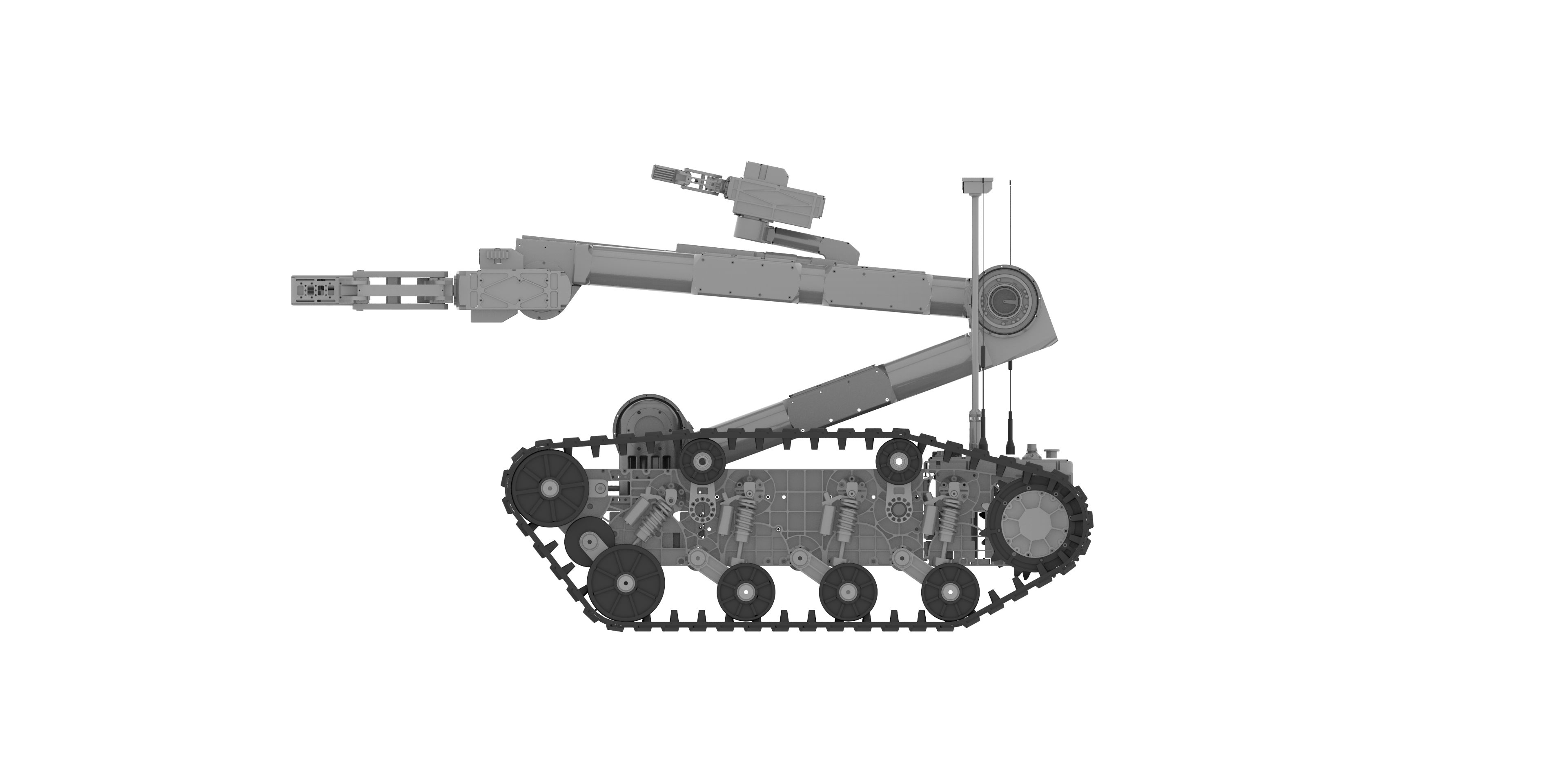

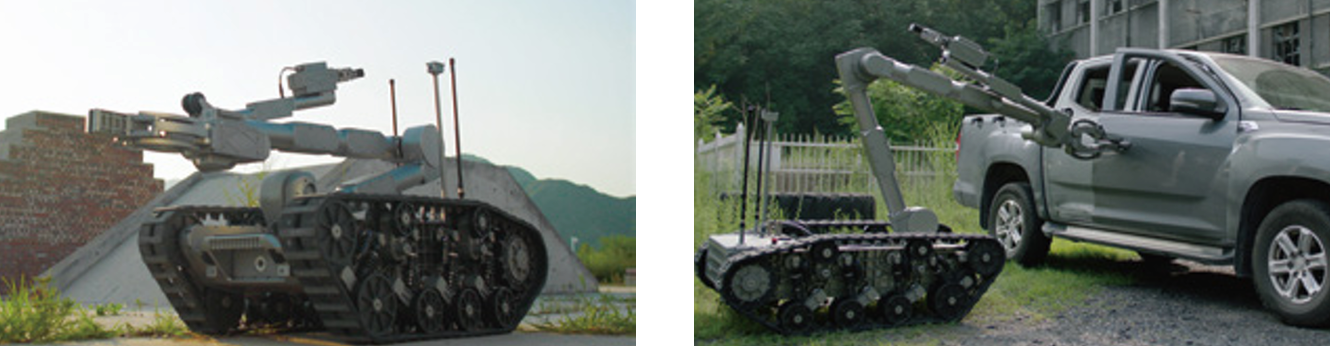

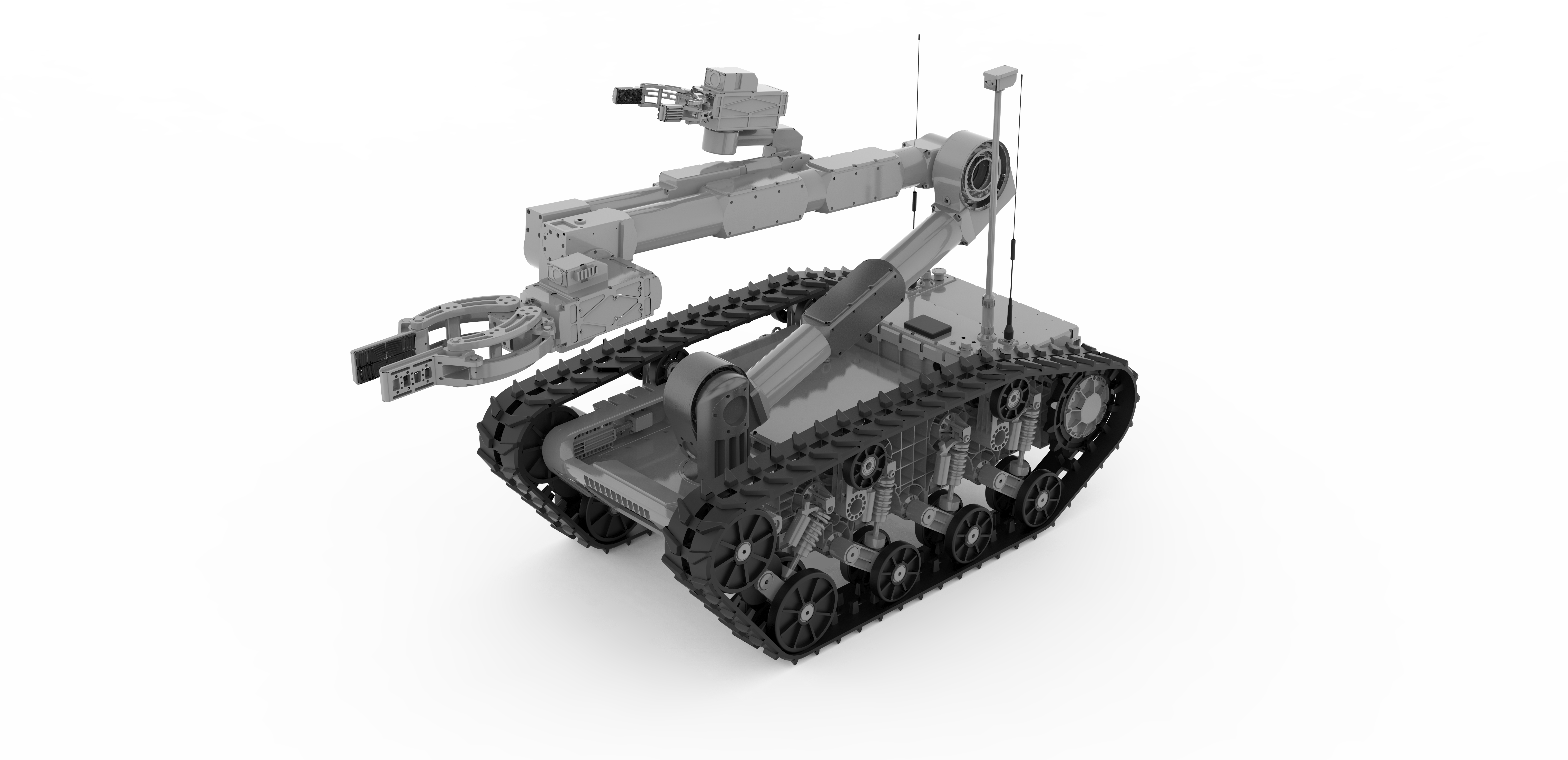

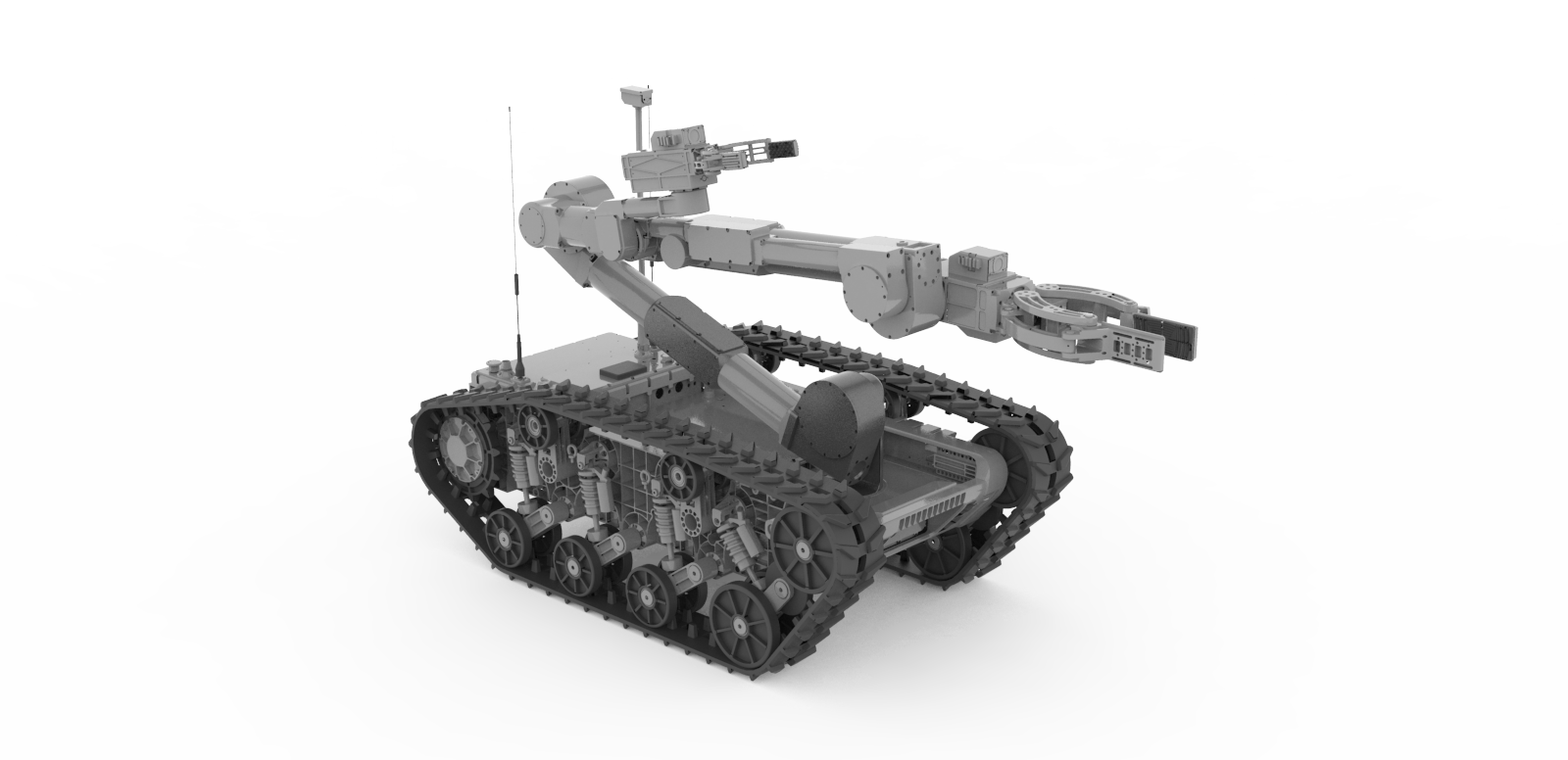

Product Overview
REOD4000 is another heavyweight product in the EOD field. To cope with more complex operating environments, we have reconstructed it from multiple dimensions such as chassis structure, power system, and mechanical arm. Now, both off-road performance and clamping weight have been greatly improved. At the same time, we have also continued the design concept of "easy to control" in this series of products, so that this big guy does not look clumsy. On the contrary, users will be impressed by its flexibility and strength.
Features
100KG super strong clamping and lifting performance
"Christie" suspension system
Graphical dual redundant operation
Remote 3D real-time display
Intelligent preset position control
"X-Y-Z” gripper translation technology based on automatic solution
Function
Remotely control the device to approach the danger scene, explore the source of danger, take disposal measures or relocate the source of danger according to the mission objectives, and protect front-line workers and the public from personal injury.
Specifications
Robot
Dimension：1600×850×1300 mm
Weight：≤350kg
Max Speed：≥5m/s
Vertical obstacle clearance：≥400mm
Ditch crossing width：≥800mm
Climbing Angle：≥45°
Wading Depth：≥500mm
Battery Life：≥10h
Protection Grade：IP66

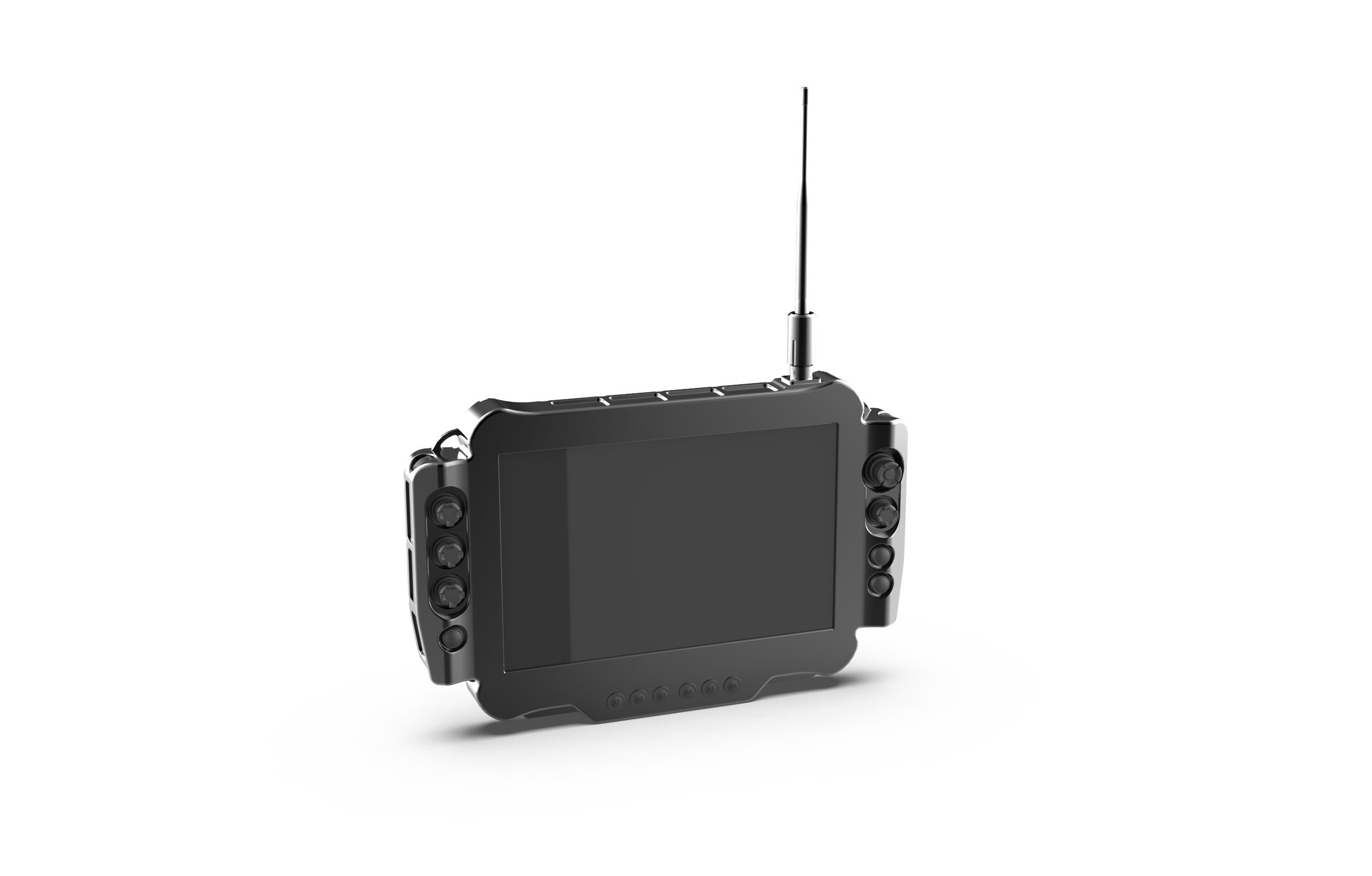

Controller
Dimension：≤400×300×100mm
Weight：≤3kg
Screen：12＂LCD
Video Channel：7-Channel
Operation Mode：Joystick + Touch screen
Communication Range：Wired≥200m ;Wireless≥1000m (Outdoor)
Robotic Arm
Clamping in extended state：2600mm
Clamping in retract state：≥200kg
Maximum Clamping Width:355mm
DOF：7
Maximum Clamping Depth：2200mm
Protection level environmental adaptability
Robot Platform：IP66
Arm：IP66
Operating Temperature：-40℃～＋50℃
Storage Temperature：-45℃～＋60℃
