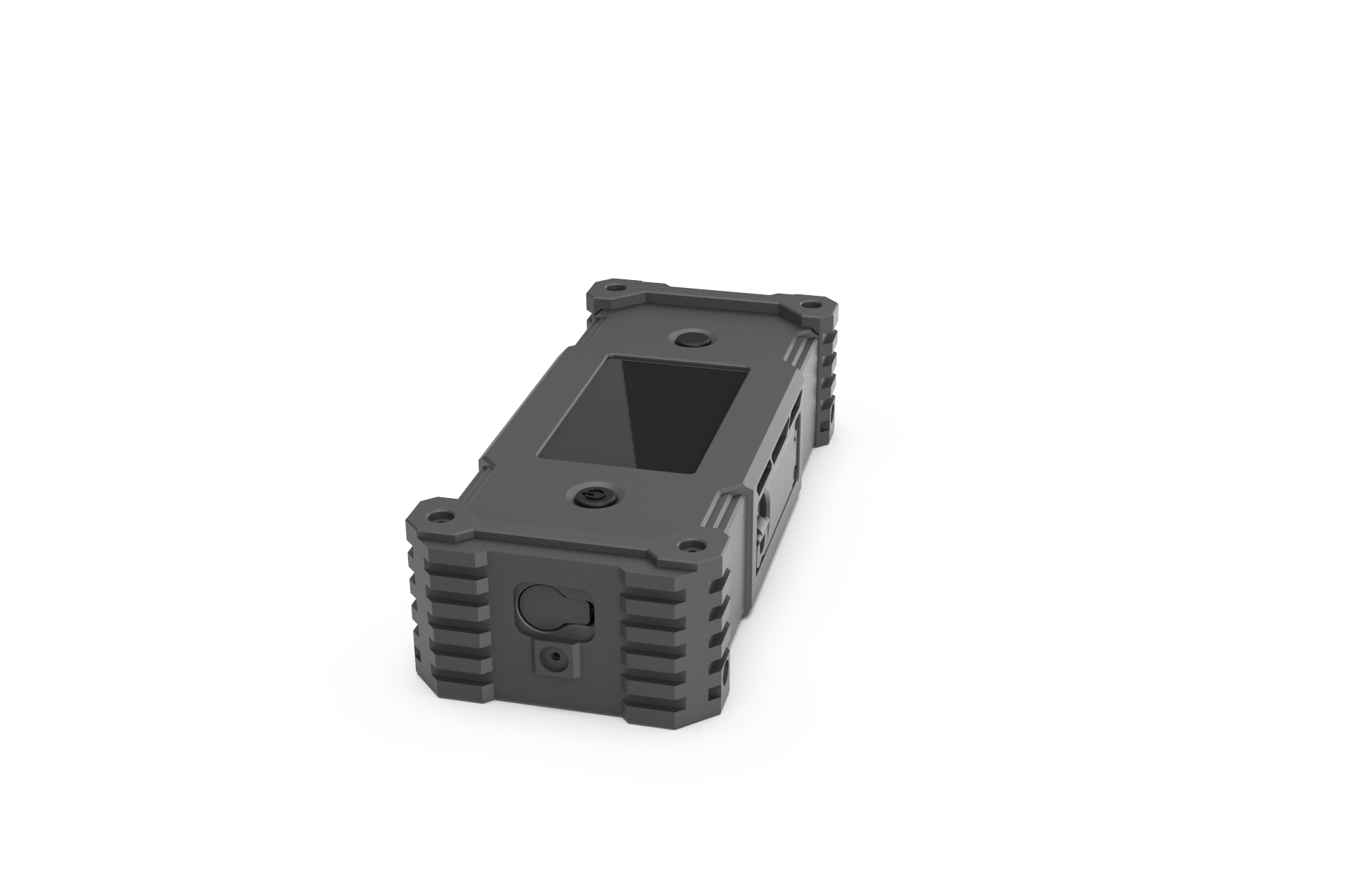

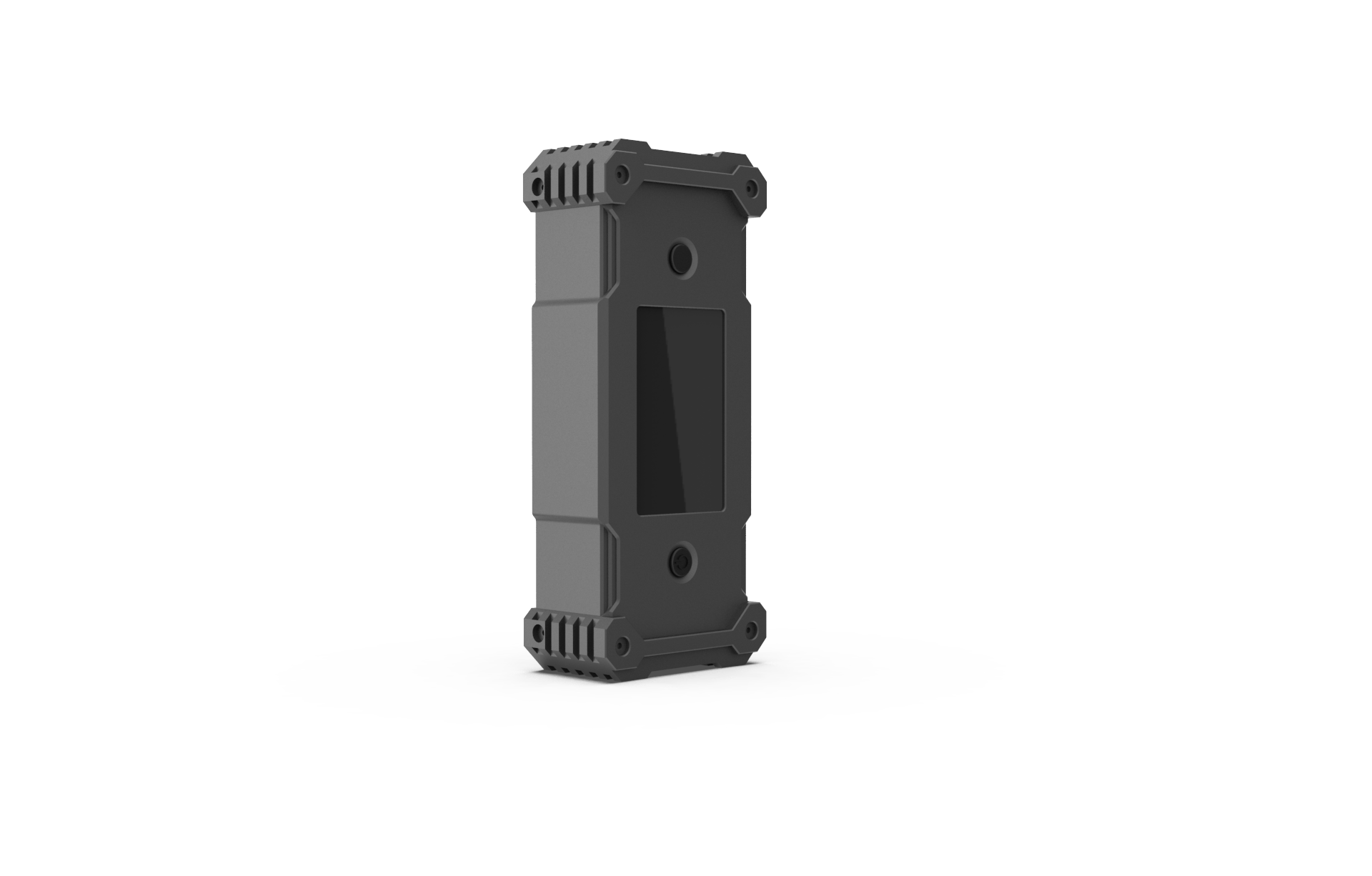

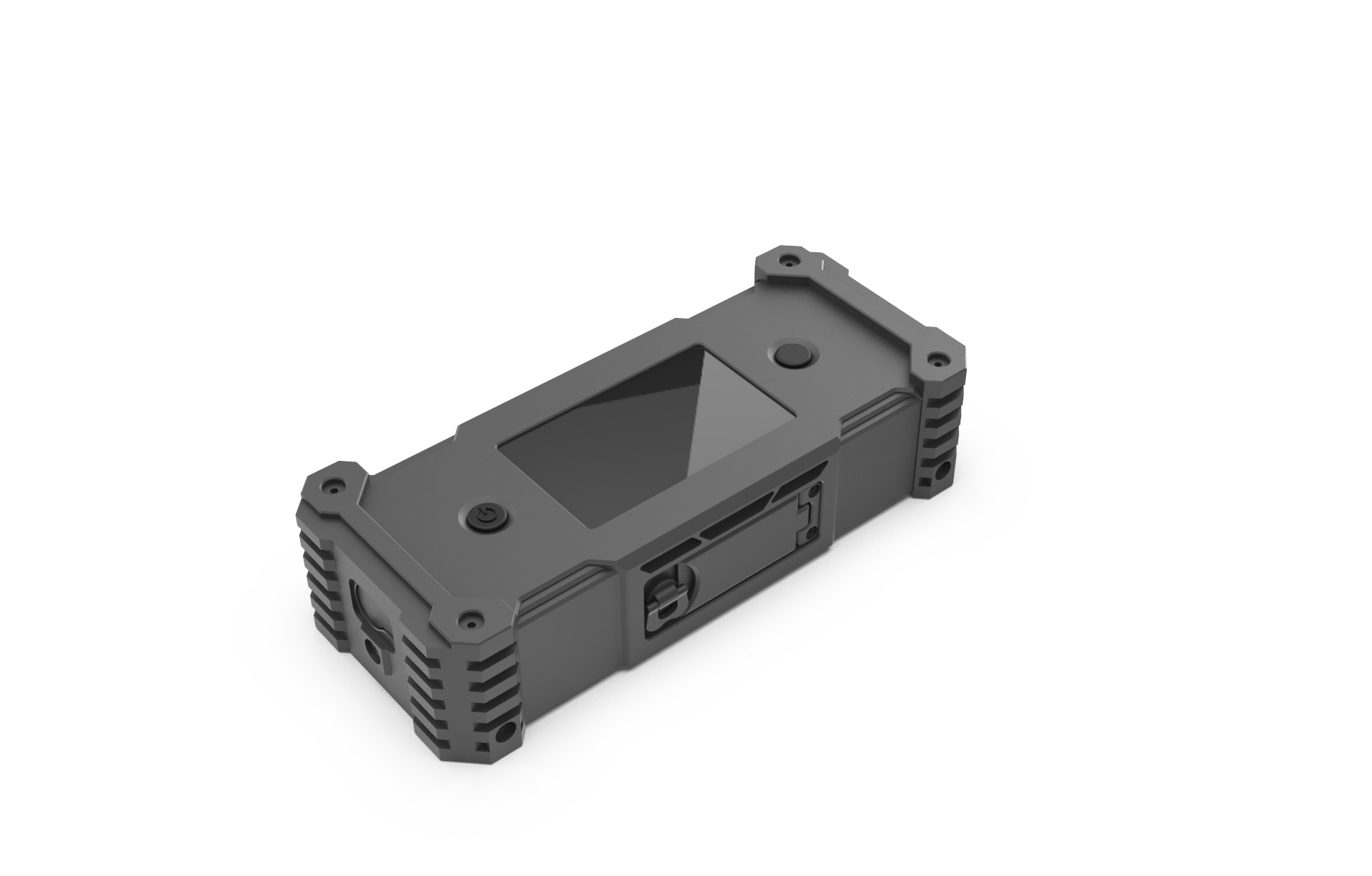

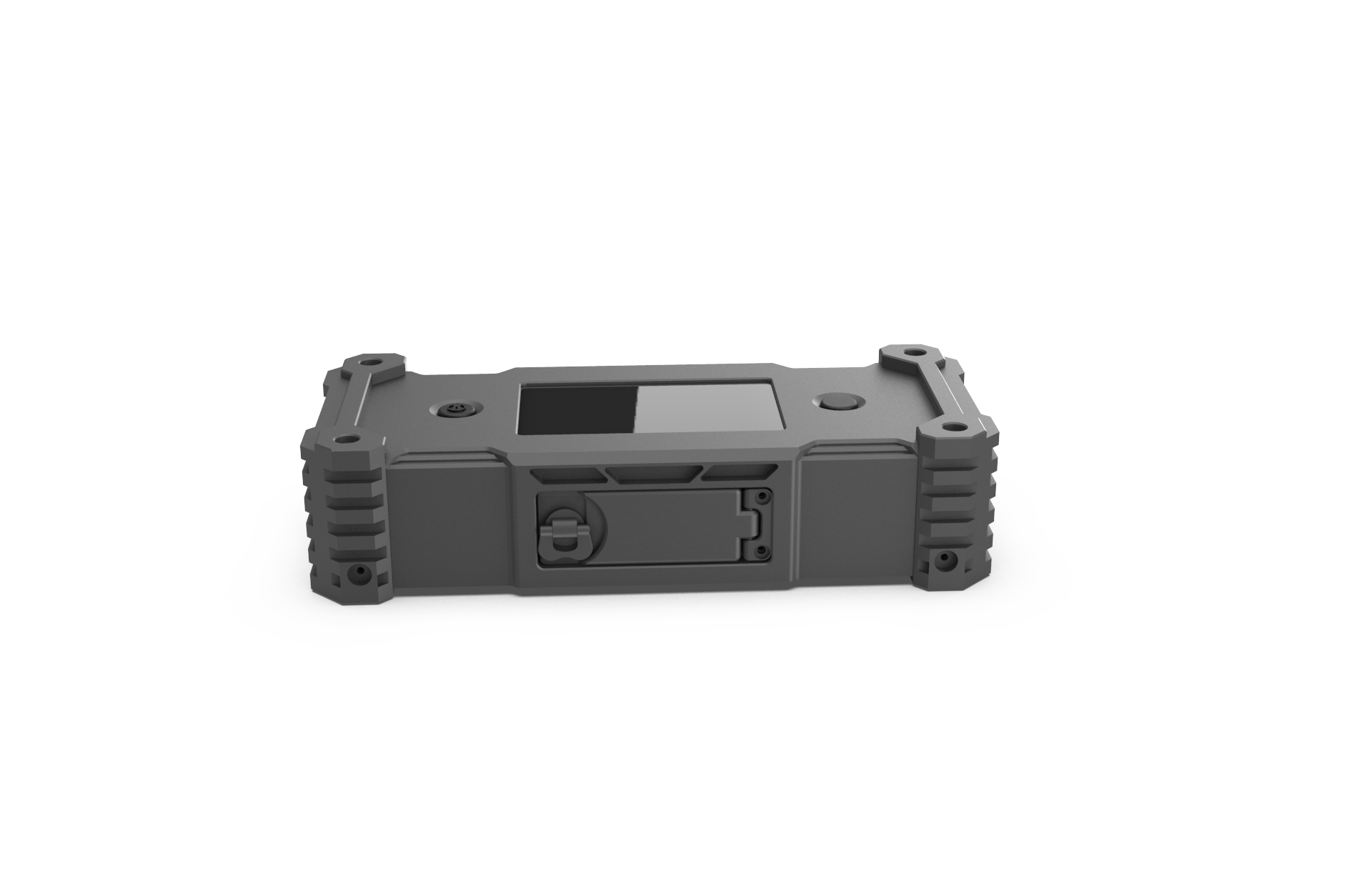

TW16 Handheld Through-wall Detection Radar

Product Overview

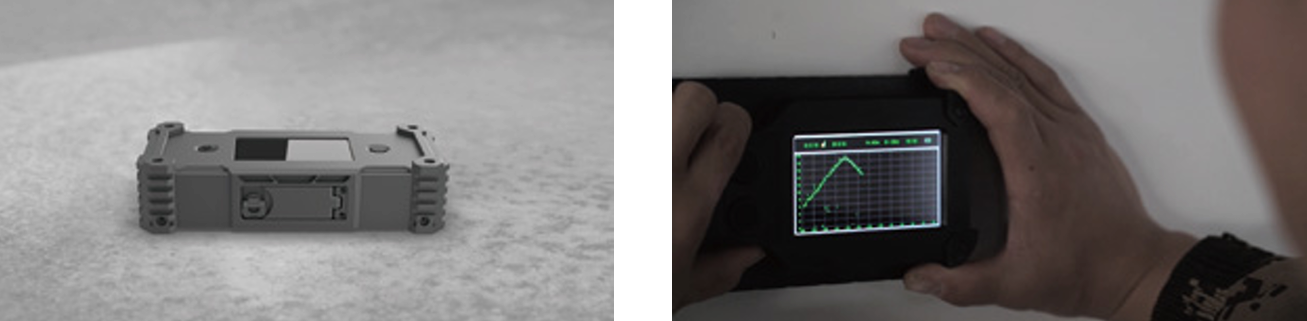

TW16 radar is a portable wall detection radar, which uses ultra-wideband radar technology to detect static and dynamic targets behind walls or other shelters through electromagnet-ic wave signals. This product uses the strong penetration of ultra-wideband radar signals to obstacles such as non-metallic walls, and forms effective feedback for weak movements such as human movement, breathing, heartbeat, body shaking, and limb swinging. After these feedbacks are processed by algorithms, the distance of the target can be displayed on the display screen, and the movement pattern of the target can be determined by further analysis of the displayed image.

Features

Compact structure, easy to carry by one person

Can penetrate common wall materials (brick, soil, wood)

Real-time detection of target movements

Strong anti-interference ability, effectively filtering out background clutter

Sturdy and durable, waterproof and anti-fouling, super environmental adaptability

Function

Detect static and dynamic targets behind walls, inside buildings (or under floors), and provide feedback on target distance and movement characteris-tics.

Specifications

Boot Time：＜2s

Center Operating Frequency：≤4GHz

Weight：≤650g

Detection Range：Under the condition of solid 24 cm brick wall, detection of static targets ≥15 meters, dynamic targets ≥30 meters

Detection Angle：≥±60° (H)，≥±45° (V)

Effective Detection Time：≤2s (Dynamic target)，≤10s (Static target)

Error：±0.5m

Recognition Probability：≥95%

Detection Rear Anti-interference Distance：≤2m

Battery：18650 battery, external charging

Battery Life：≥8h

Operating Temperature：-40℃～+55℃

Protection Grade：IP67
