Product Overview

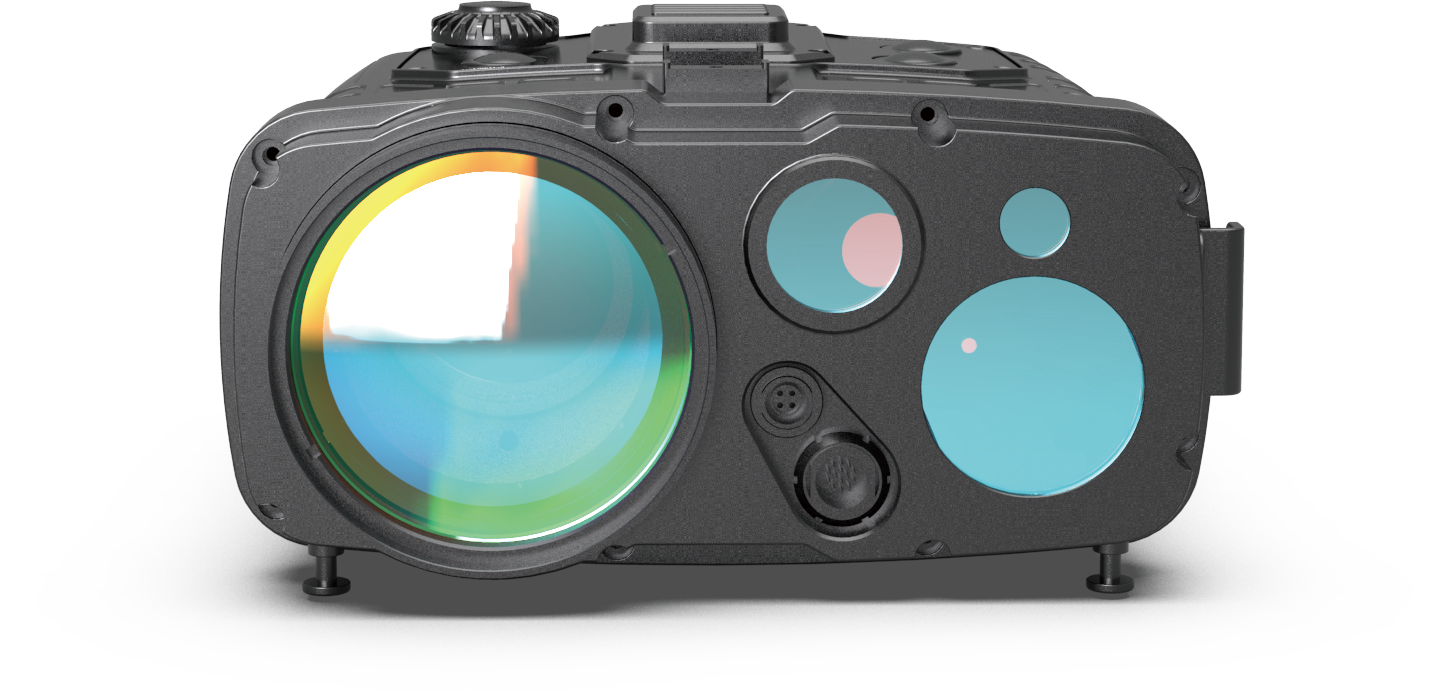

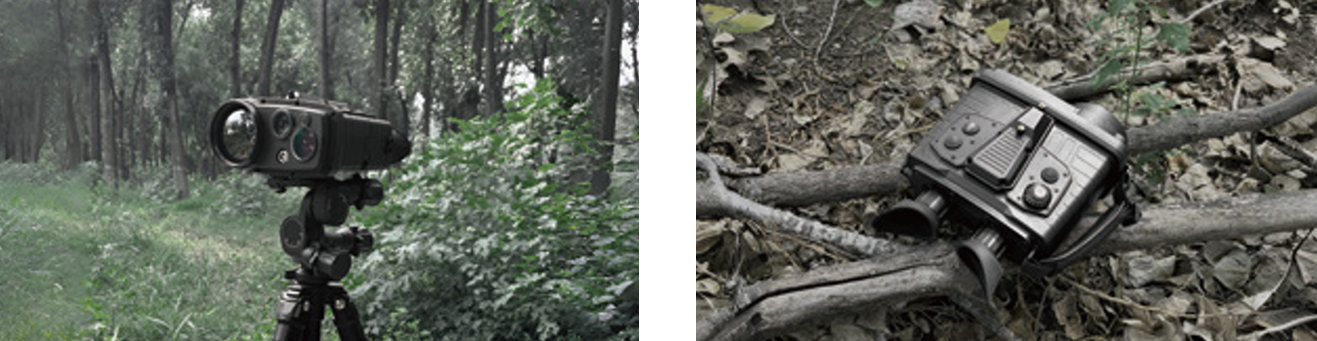

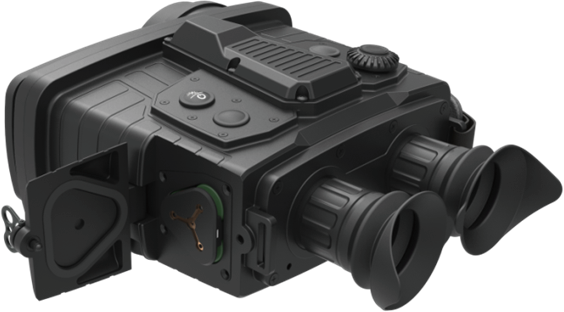

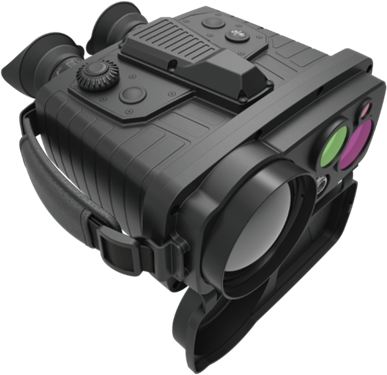

NVD3000 is a binocular handheld uncooled thermal imaging observation instrument with functions such as light, infrared, laser ranging, and target positioning. It integrates a 640×512@12um high-definition thermal imager and a 2K daylight camera to meet the needs of users for day and night use, clearly restore the real scene and not miss any suspicious targets. With the built-in satellite positioning module, laser ranging module, electronic compass, etc., it can achieve self-positioning and target positioning. Therefore, this product is particularly suitable for field observation, surveillance and other work scenes, and obtains target geographic location data. And special functions such as target identification and search guidance.
Features
640 infrared detector
2K visible light camera
High-precision laser rangefinder
High degree of integration, with multiple practical functions to meet users' various needs
Lightweight and easy to carry
Graphical operation interface, simple and easy to use
Function
IR modes：black-hot / white-hot
Visible light black-white and color modes
Laser ranging and multi-target relative distance display
Target positioning and self-positioning
Guide target search
Photography and video recording
4X electronic zoom
Specifications
IR Camera
Recognition Distance:≥2.8km (vehicle);≥1km (human)
Detector：640×512@12um
Focal Length：70mm
FOV：≥6.3°×5.0°
LRF
Effective Range：50m~6000m
Precision：≤2m
Accurate Rate：≥98%
Repeat Frequency：≥0.5Hz
Ranging Logic：Select to display the first or last target capability measured
Laser Wavelength:Eye-safe band
Visible Light Camera
Recognition Distance： ≥6.6km (vehicle);≥3km (vehicle)
Sensor：2592×1944@2.7um
Focal Length：105mm
Focal Length Adaptation Range：50m～∞
FOV：≥3.2°×2.4°
Defog：Yes
Positioning
Positioning Accuracy：≤7m (CEP)，≤10m (PE)
Accuracy：≤0.5° (RMS，Tilt range：-15°～15°)
Target Positioning Accuracy：≤20m (CEP)，at 2km
Interface
Data Interface：USB
Video Interface：PAL
Communication Interface：RS232
Other
Diopter：-4SD～+4SD
Digital Zoom：1×~4×
Battery Life：≥10h
Storage Capacity：32G
Operating Temperature：-40℃～+55℃
Protection Grade：IP67
Weight：≤1.6kg
