Abilities
l Detect electronic devices suchas bugs, microphones, cameras, voice recorders, and phones that may be turnedoff, asleep, or on
l Detection of small electroniccomponents such as SIM cards and electronic components in shielded enclosures
l Detection of explosive devices,electronic components and metal striking elements
l Remote detection of electroniccomponents and metal striking elements at a distance of up to 6 meters
l Locating electronic componentsand metal striking elements in a 16 degree sector
l Indication of the location ofthe target with laser illumination
l Two types of radiated signals:pulse modulation of the carrier frequency in the pulse detection mode with aduty cycle of 160 and in the CW mode with a small duty cycle of 20, similar tothe "20K" mode"
l Recognition (identification) ofelectronic components from natural semiconductors (rust, metal-to-metalcontacts, etc.) in CW mode, by listening to the signal from the output of theamplitude detector through the built-in speaker or headsets when receiving the2nd and 3rd harmonics
l The CW mode with pulsemodulation of the carrier frequency with a small duty cycle can be used todetect working analog radio microphones due to the occurrence of acousticfeedback
l Additional assessment of the2nd and 3rd harmonic levels by ear based on the frequency of clicks playedthrough the built-in speaker or wireless headphones
l Automatic search for thefrequency channel with the lowest level of interference for operation in adifficult electromagnetic situation
l Automatic and manual poweroutput adjustment
l Manual adjustment of receiversensitivity
l Maximum detection efficiencyfor any electronic devices in the most difficult conditions when used withother replaceable antenna modules LORNET STAR
l The presence of an additionalbattery with a charging time significantly less than the discharge time allowsfor round the clock operation of the device if necessary
l The removable telescopic rodallows the operator to work in hard-to-reach areas
Technicalparameters
Transmitter
Bandwidth 3581.5 - 3607.5 MHz
Twotypes of radiated signal:
"Pulse"- Pulse modulation of the carrier frequency with a duty cycle: 160
CW -pulse modulation with duty cycle: 20
Maximumpeak power of radiation in pulse mode (Pulse) 18 W
Maximumaverage radiation power in pulse mode (Pulse) 112 mW
Maximumcontinuous radiation power (CW) 6 W
Average power of radiation in pulse mode (CW) 300 mW
Therange of manual power adjustment 22 dB
Widthof the direction diagram 16 degree
Reciever
Frequencyrate:
Secondharmonic 7163- 7215MHz
Thirdharmonic 10744.5- 10822.5 MHz
Receiversensitivity is not worse -110 dBm
Dynamicrange of the receiving tract (including the attenuator) 30 (10) dB
Theamount of frequency channels when automatically selecting the receiving channel 3
Battery
Li-ionbattery:
Voltage 12 V
Capacity 7.8 Ah
Continuousoperation time at maximum power not less than:
InPulse mode 2.5 h
In CWmode 1.5 h
Size andweight
Thedevice size:
Inworking condition, without telescopic rod 47х20х14 cm
In foldcondition, without telescopic rod 29х20х17 cm
Telescopicrod size in fold condition 43х4х4 cm
Size ofthe telescopic rod in the extended state 90х4х4 cm
Weightin working condition, without telescopic rod 1 kg
Telescopicrod weight 0.4kg
Thesize of the bag 42х24х34cm
Weightin transport package 5.0 kg
Exportpackage dimensions 48х34х27cm
Weightin export package 4.1 kg
Operatingterms
Operatingtemperature range from +5 to+40°С

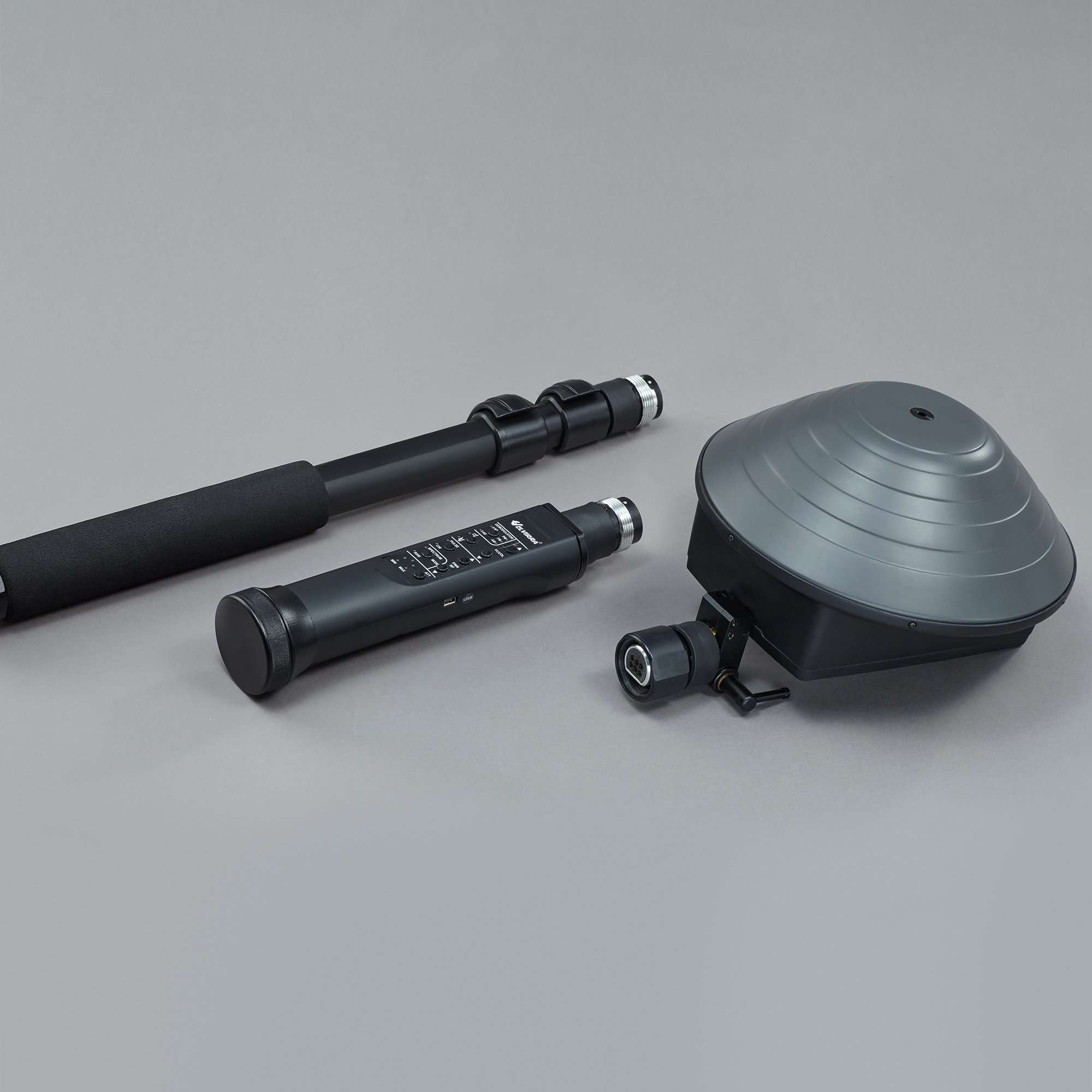

Equipmentkit
l Replacement antenna module"LORNET STAR 36m"
l Handle-control panel withbuilt-in battery container
l Removable telescopic pole
l 2 (two) replaceable (Li-ion)rechargeable batteries (12 V)
l Charging unit for rechargeablebattaries
l 220V battery charger forrechargeable batteries
l Headphone
l Transport bag-stowage
l Documentation (operator'smanual, passport)
