Product Overview

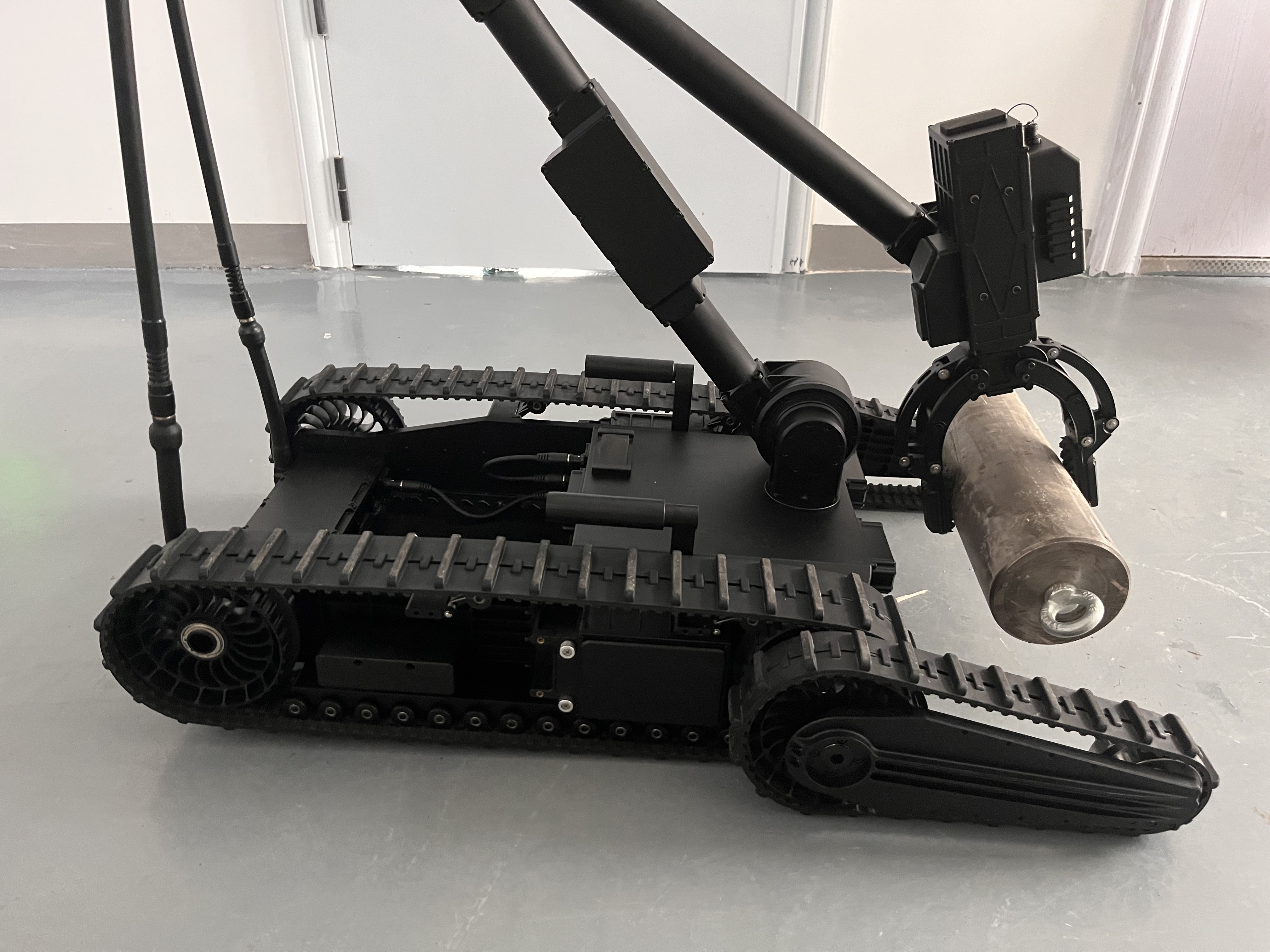

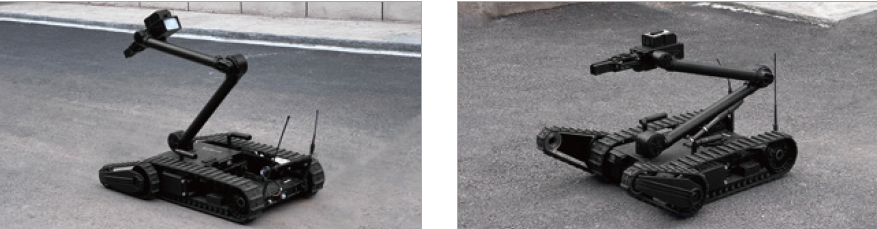

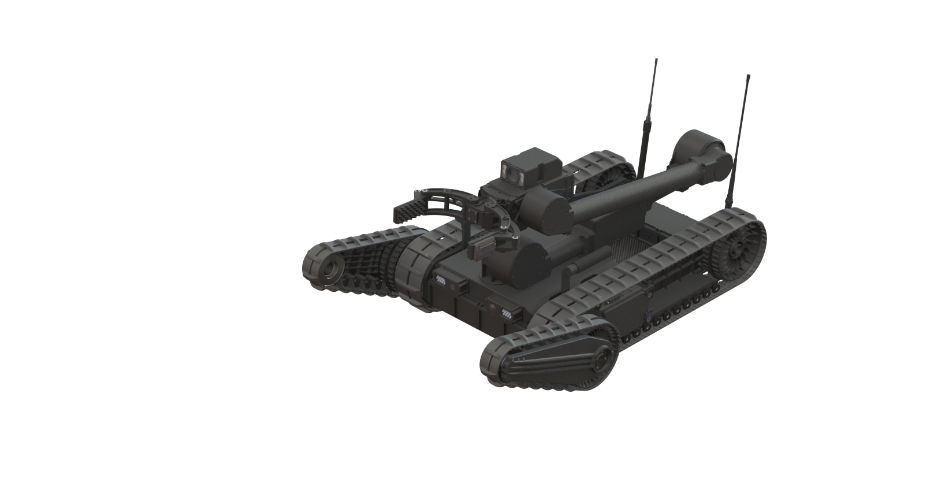

REOD450 is an upgraded version of Hound I. It is a small and medium-sized bomb disposal robot that integrates reconnaissance, transfer and disposal. It has a larger size and stron-ger grasping ability. The maximum grasping weight can reach 30kg. It uses the structural design of this series of robots. It is sturdy and reliable. The protection meets the require-ments of dustproof, waterproof and corrosion-resistant. It has stronger adaptability to operations in high-risk environments such as urban counter-terrorism, public safety, earth-quake relief, suspicious object inspection, roadside bomb removal, etc.
Features
Enhanced robotic arm
Graphical dual redundant operation Remote 3D real-time display Intelligent "preset position" control
"X-Y-Z" gripper translation technology based on automatic solution
6-channel video images
6-degree-of-freedom robotic arm
Function
Remotely control the device to approach the danger scene, explore the source of danger, take disposal measures or relocate the source of danger according to the mission objectives, and protect front-line workers and the public from personal injury.
Specifications
Robot
Dimension：≤ 850×600×600mm
Weight：≤ 50kg
Max Speed：≥ 1.7m/s
Vertical obstacle clearance：300mm
Ditch crossing width：400mm
Climbing Angle：≥45°
Climb Stairs：≥45°
Battery Life：≥2h
Protection Grade：IP65
Controller
Dimension：≤370×210×75mm
Weight：≤2kg
Screen：10.1＂LCD
Video Channel：6-Channel
Operation Mode：Joystick + Touch screen
Communication Range：Wired≥100m ;Wireless≥1000m (Outdoor)
Robotic Arm
Clamping in extended state：≥8kg
Clamping in retract state：≥30kg
Number of Grippers：1
DOF：6
