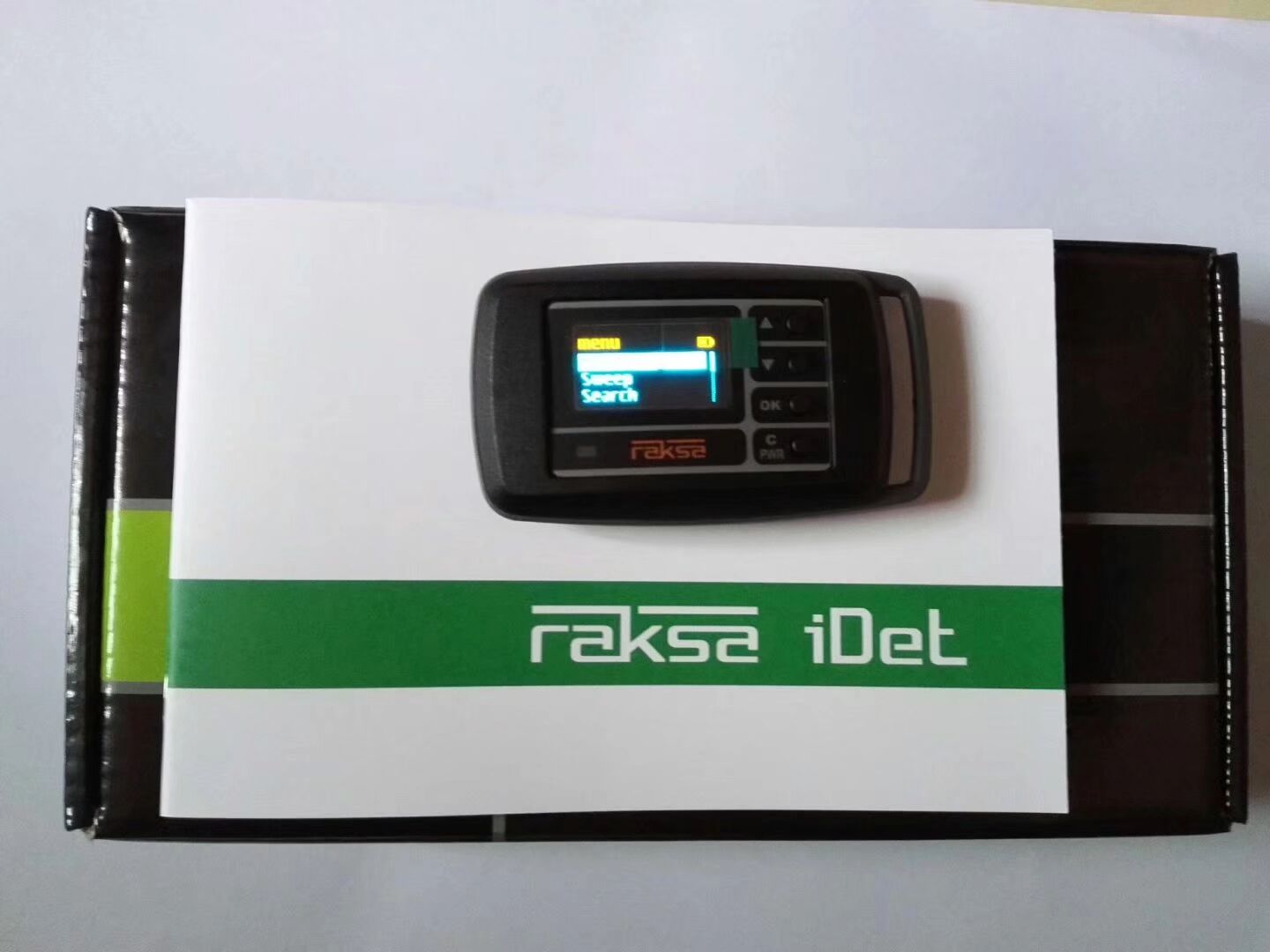

RAKSA iDet Selective RF Detector canbe used to detect and locate in near field a wide variety of radio transmittersused for secret access to information.
RAKSA iDet detects:
Cellular phones of GSM 850/ 900E/ 1800/ 1900, UMTS 850/ 900/1800/ 1900/ 2100, CDMA 450 (A-H)/ 800/ 1900 standards
Cordless DECT phones
Bluetooth and Wi-Fi devices
Wireless video cameras
Radio transmitters with analog modulation (AM, FM, PM)
Radio transmitters with digital modulation and continuous carrier (FSK, PSK,etc.)
Radio transmitters with wideband modulation up to 10 MHz bandwidth
RAKSA iDet is a superheterodynereceiver with low IF and frequency synthesizer. Scanning and analyzingcycle period is 1.0-1.5 sec. RAKSA iDet can operate within guard,sweep, search, difference search modes and monitoring of digital signals.
CompetitiveAdvantages:
l Selectivereception of radio signals
l High speed ofscanning and analyzing
l Detection ofwideband and digital signals
l Adaptation tothe background noise in Guard Mode
l Differencesearch mode
l Audiomonitoring
l Signalfrequency and level measurement
l Alarm eventslog
l Soundlessalarm indication (vibration mode)
l No need forexternal antenna
l Interfacelanguages: English, German, Spanish, Italian, French, Russian
TechnicalCharacteristics
Frequencyband 40 - 3800 МHz
Typical sensitivity 70 mV/m
Dynamicrange 50 dB
Bandwidth 10 МHz
Period offull scanning cycle 1.5 s
Running time in guardmode 4 - 12 h
Running timein other modes 3 h
OLED display 128 x 64
Dimensions 77 х 43 х 18 mm
Weight 35 g
Detectionrange of radio signal source is determined by its radiated power andsensitivity of the field indicator. In cell phones radiated power depends onthe reception conditions, such as distance from the base station, locationinside or outside the building, etc. and can vary significantly. Thetypical values and limits of detection range of radio signal sources for theRAKSA iDet field indicator are as follows:
GSM cell phone: radiated power -20 - +30 dBm, detection range 0.3 - 80m, typical value 10 - 20 m.
UMTS cell phone: radiated power -40 - +20 dBm, detection range 0.03 - 30m, typical value 2 - 3 m.
DECTwireless phone: radiated power -20 dBm, detection range 8 m.
Wirelessmicrophone for secret information retrieval : radiated power 0 - +10 dBm,detection range 3 - 10 m.
Thelimits of the transmitter power corresponding to the dynamic range of the RAKSAiDet field indicator are as follows:
at thedistance of 1 m from the transmitter 0.15 mW - 15 W
at the distance of 3 m fromthe transmitter 1.4 mW - 140 W
